Polystroooder Tri Hotend - 1.75mm

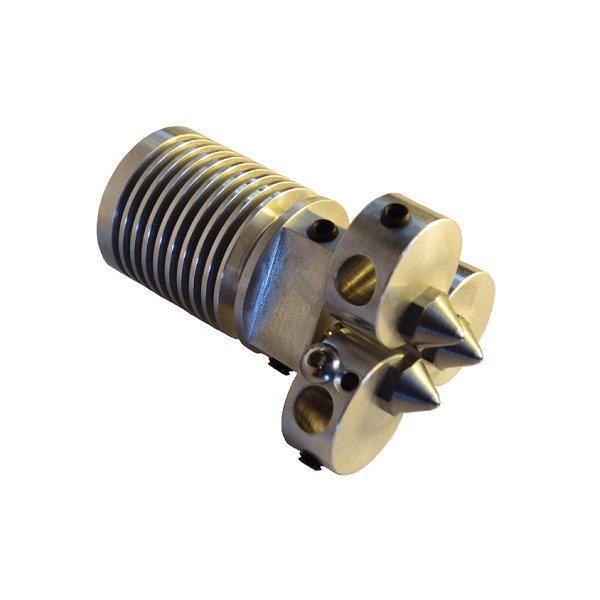

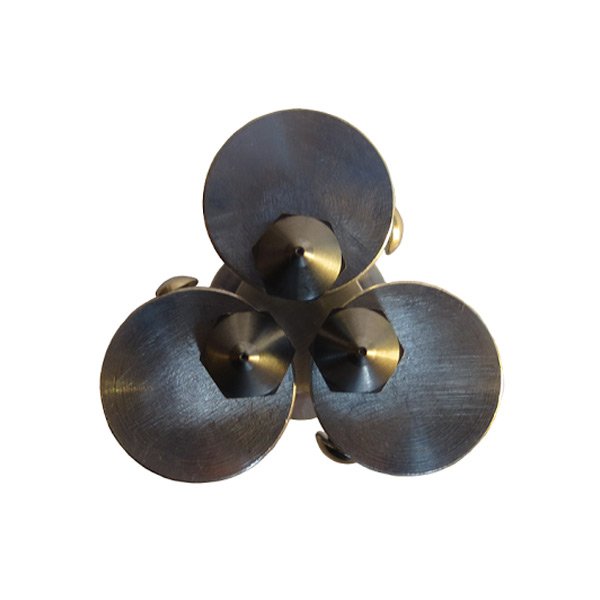

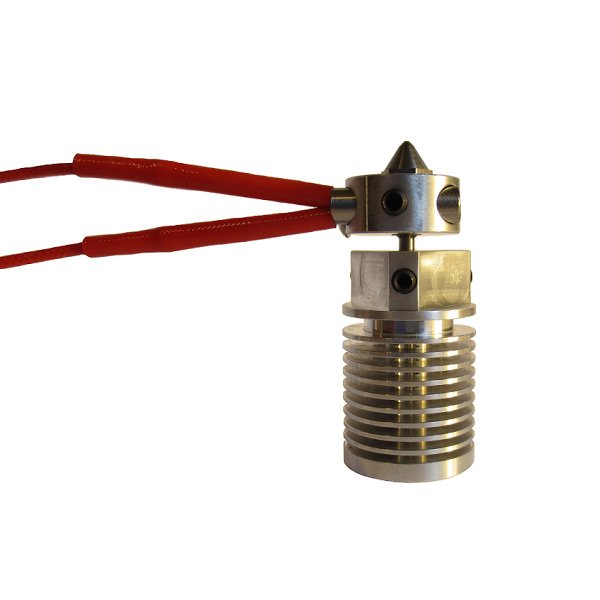

The PolyStroooder Tri Hotend is three separate hotends all rolled into one! This three nozzled all-metal bowden hotend is capable of printing materials that melt under 300 degrees Celsius, including nylon and polycarbonate. Explore new technologies that are only available with the Tri Hotend, like a Titanium alloy thermal isolator, as well as Tungsten Disulphide, which is used in certain areas of the hotend to prevent blockage.
ABS, PLA, Nylon, Polycarbonate, PVA, and anything else that melts under 300 degrees Celsius can be printed. It uses standard 1.75mm filament, which is fed into each of the three nozzles by a PTFE bowden tube for the lowest possible friction.

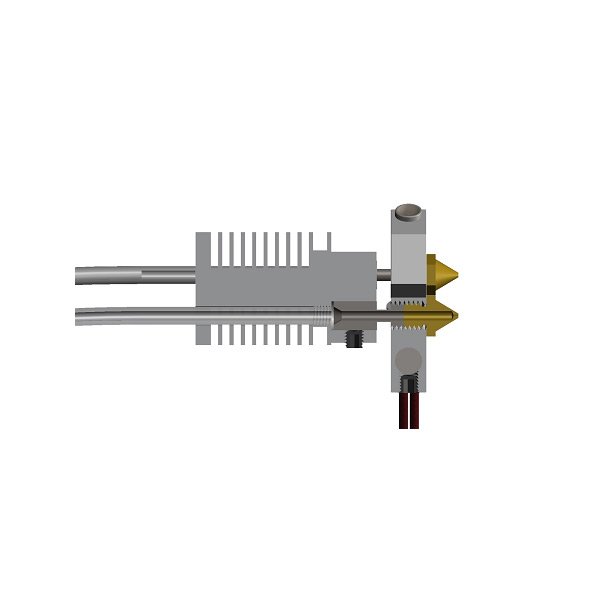

The PTFE bowden tubes are threaded directly into the heat sink and end at the top of the thermal isolator. There are no PTC connectors to break or wear out, which is a common problem for other hotends. The threads hold the bowden tube in place rigidly to prevent backlash during retractions.
The Tri hotend includes several patent pending new technologies, such as a Titanium alloy thermal isolator for 250% better thermal performance compared to regular stainless steel. This hotend also uses Tungsten Disulphide (WS2) in critical areas to prevent jams, which are a major concern when printing with PLA. The print quality is greatly increased because of these features.
Thermal properties:
- Melt volume: ~50 cubic millimeters
- Melt length: ~17 millimeters
- Thermal transition length: ~3 millimeters
- Maximum operational temperature: 300 degrees Celsius continuous
- Heater block mass: 5.8 grams
- Nozzle mass: 2.4 grams
- Total hot thermal mass: 5.83 joules/degree Celsius
- Approximate heat up time: 90 seconds to 260 degrees Celsius
What comes in the box:
- 1 Tri heatsink
- 3 Circular heater blocks
- 3 Titanium alloy thermal isolators (WS2 coated)
- 3 0.35mm M6 brass nozzles (WS2 coated)
- 1 6 foot long 2mmIDx4mmOD PTFE bowden tube (cut to size)
- 3 12v 40 watt 6mm heater cartridges
- 3 104GT-2 Semitec thermistors
- 1 12 inch uncut glass fiber sleeve (for thermistor connections)
- 7 crimp tubes (for thermistor connections)
- 6 short zip ties (for wire management)
- ~20 feet of uncut electrical wiring for thermistor connections
- 1 30mm or 40mm 12 volt fan
- 6 M4 set screws
- 3 M3 short hex head screws (for the thermistors)
- 2 M3 long hex head screws (for the fan)
- 1 small hex wrench for the included screws
- 2D Printed instructions and important information
What you need:
- A working 3d printer (must be able to print your own mount)
- Basic assembly skills
- Pliers
- Scissors
- Electrical Multimeter (recommended)
- Time
Please be aware that if your 3d printer's electronic control board does not have enough outputs for three hotends, you will not be able to use all three nozzles. Please check this as your board may only have support for one hotend!
