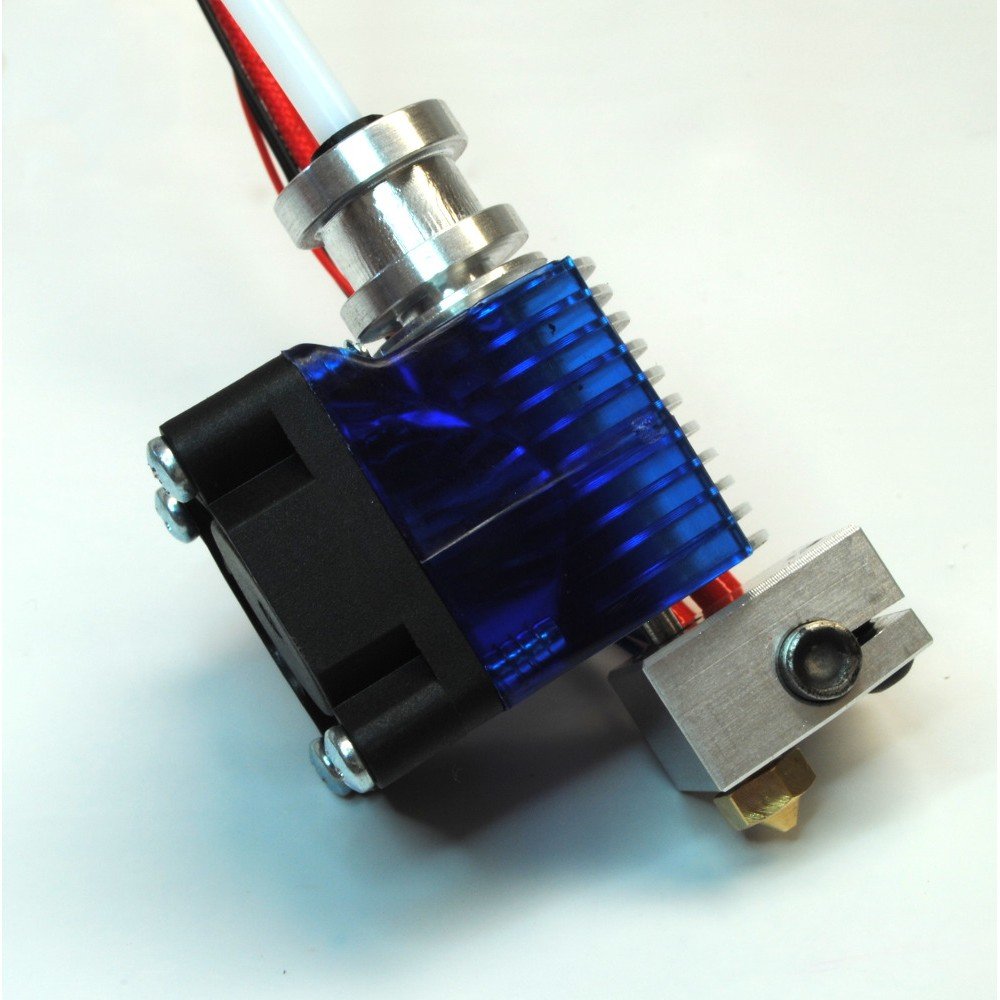

E3D v6 HotEnd Full Kit 1.75mm Universal (with Bowden add-on / 12v)

Print with the Widest Range of Materials Possible.

The E3D-v6 HotEnd is smaller, lighter, and much improved. Building on our signature high temperature performance that allows you to print high temperature materials, we've now focused on adding increased functionality with soft and flexible filament. By providing a PTFE liner tube through the hotend that you can extend into your extruder this gives the ability to add the confinement and constraint needed to make excellent quality prints with flexible filaments like NinjaFlex, FlexPLA and FlexPolyester. This opens up a huge range of new opportunities for your printer.

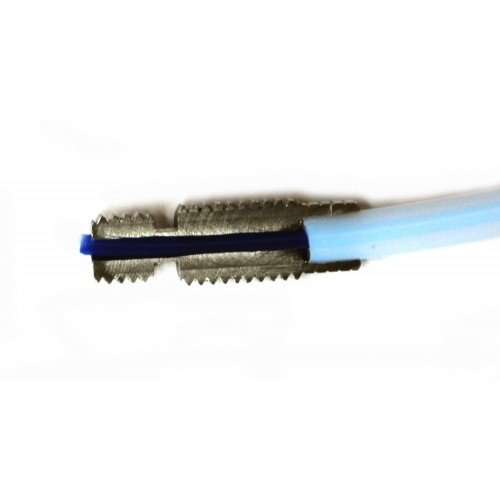

(PTFE Liner only present in 1.75mm version - 3mm Bowden has partial lining - 3mm Direct has no lining)

Print at High Temperature.

With no PEEK or PTFE in hot regions of our HotEnd we can reach 300C with the supplied thermistor. By swapping a thermistor for a thermocouple (may require additional electronics) you can reach over 400C.

This not only allows you to print extremely high temperature materials like Polycarbonate and Nylon but also eliminates HotEnd meltdown failures associated with PEEK/PTFE designs. Although our latest v6 hotend has a PTFE liner inside the hotend this liner is never subjected to high temperatures so there is no risk of damaging the liner through overheating.

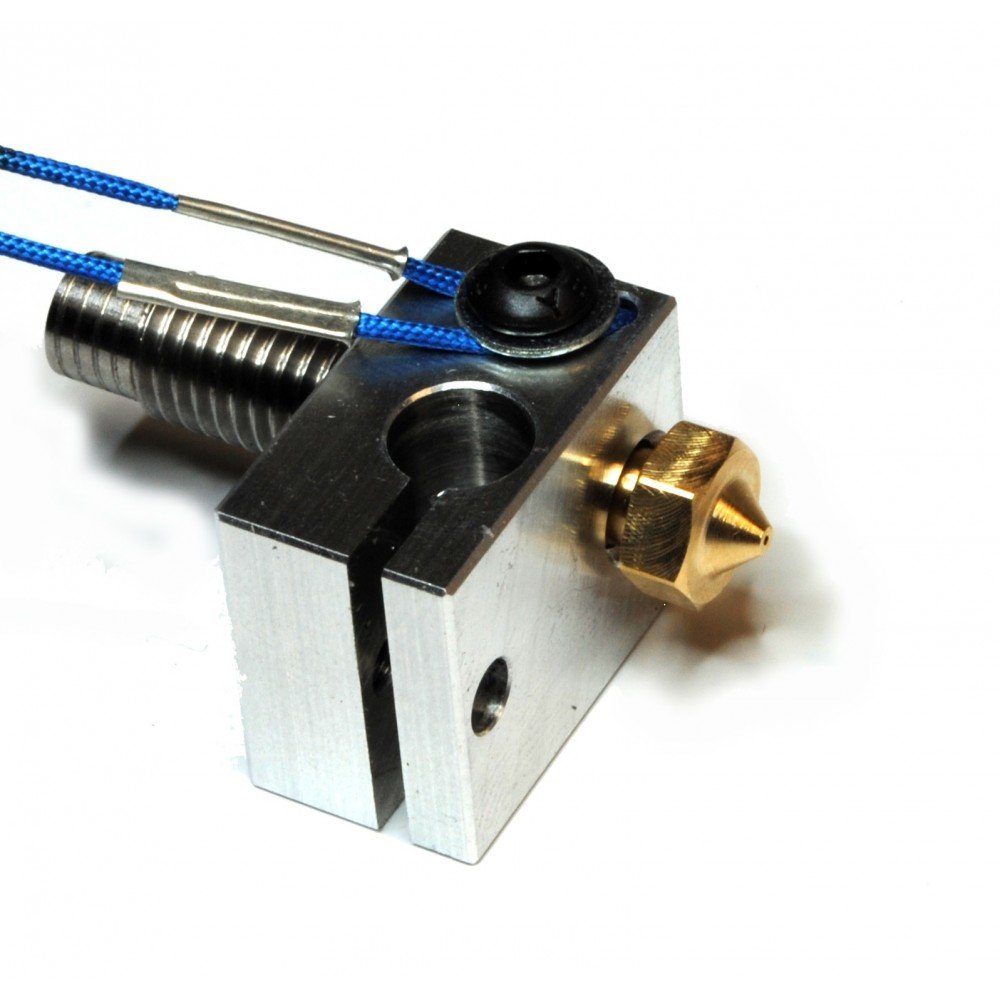

Our new HeaterBlock gives the fastest heat up times and the most responsive temperature control by clamping around the cartridge for maximum thermal contact. The new thermistor placement means you get the most accurate temperature readings with the fastest response. What this means for you the user is that you can go from 20C to 200C in just 65 seconds, temperature control is responsive enough that you can keep the hotend within 0.5C of your set temperature or less with ease.

Reduced Bulk and Z-Height.

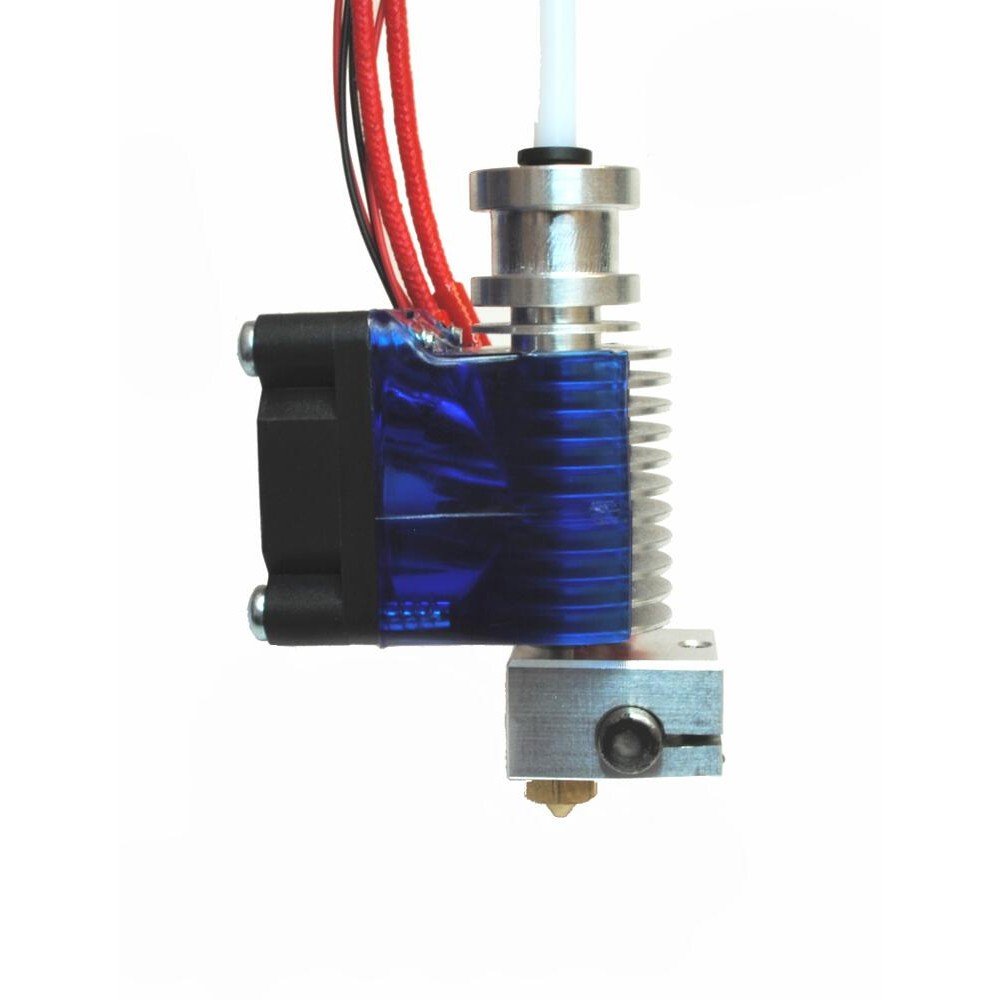

We've focused on cutting as much bulk from the E3D-v6 as possible. This means an overall length of just 62mm and significant reductions in bulk in the X/Y dimensions by using our new injection moulded fan duct.

Easy No-Solder, No-Tape, No-Adhesive Assembly or Maintenance.

We've eliminated Kapton tape or any other adhesives from the assembly process of v6. The new thermistor simply clamps into place with a small screw, high temperature glass sleeving is used to insulate the thermistor legs. This makes installing or removing the thermistor a quick and clean process compared to previous methods involving fiddly kapton taping. No soldering is needed as we supply supply solder free ferrules for making heat-resistant, quick and easy electrical connections to the thermistor legs. Most parts of the hotend simply screw together, the new fan duct simply clips into place and can be oriented in many different directions to suit your particular setup.

Simply the Best.

We've kept our sharp thermal transition that gives the high quality printing performance users have come to expect from E3D hotends. A sharp thermal break gives better control over filament output so you get more immediate start and stops when extruding as well as retracts that are more effective in combatting ooze. For the user this means sharper more accurate prints that have less stringing, oozing or blobs on the prints.

Adaptable To Suit Your Needs.

Our range of nozzle sizes gives you more opportunity to choose how you want to print. While our default 0.4mm nozzle gives great prints with a good balance of speed, ease and resolution we are offering a range of nozzles that have special geometries that are tailored to the specific needs of how you want to print. The shape of the tip of the nozzle is key to how the hotend extrudes and flattens a track of plastic. By matching the size of the tip of our nozzles to the width of track of plastic we are able to print with increased resolution in smaller nozzle sizes and with our larger nozzles we've customised the geometry so that you can easily lay down large layers for fast strong prints. Nozzles are easily and quickly changed out because of their hexagonal shape.

Overhauled for Reliability.

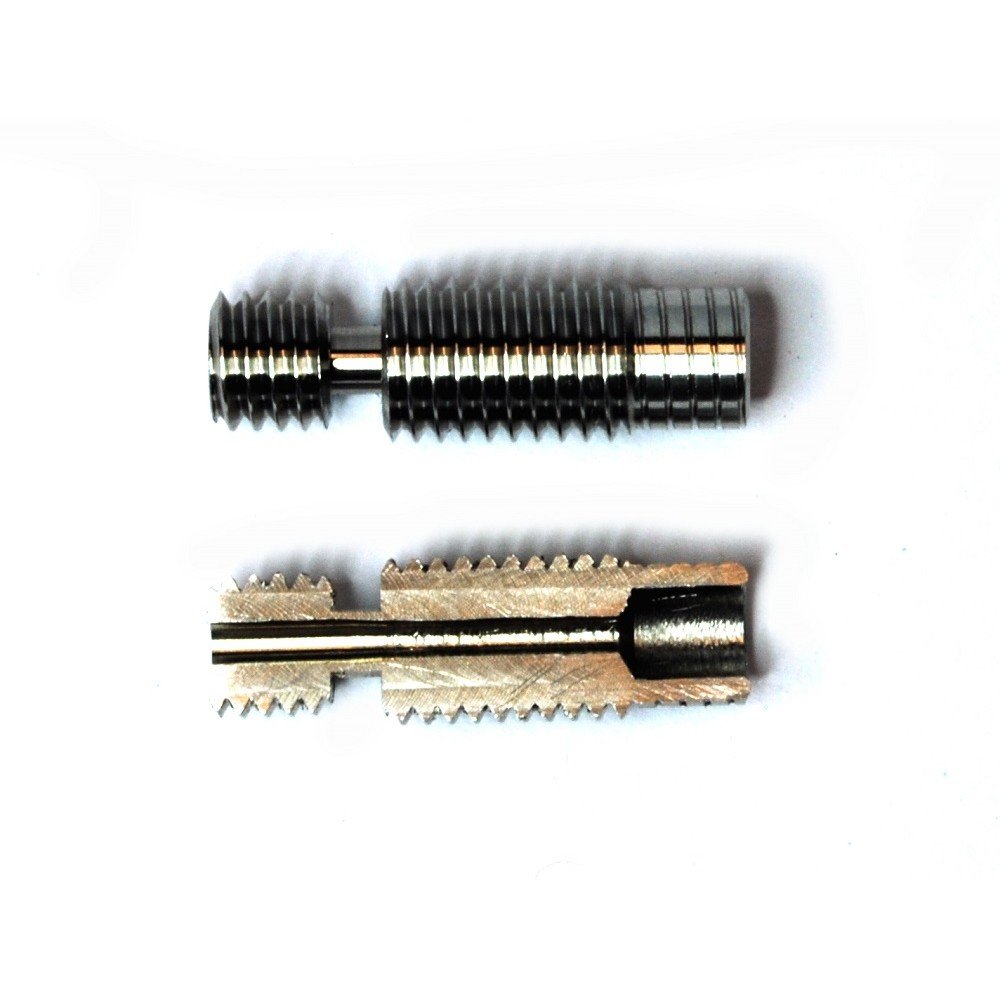

We've taken and good hard look at how failures happen and worked with our community to identify and rectify problems. We've developed a new manufacturing process for our heatbreaks that gives a fantastic surface finish which reduces the force needed to restart extrusion which helps reduce forces during frequent and long retractions such as those in bowden systems. We've redesigned the internal shape of our nozzles to reduce pressure needed to extrude which results in increased reliability and better print quality.

What's In the Box?

Metal parts

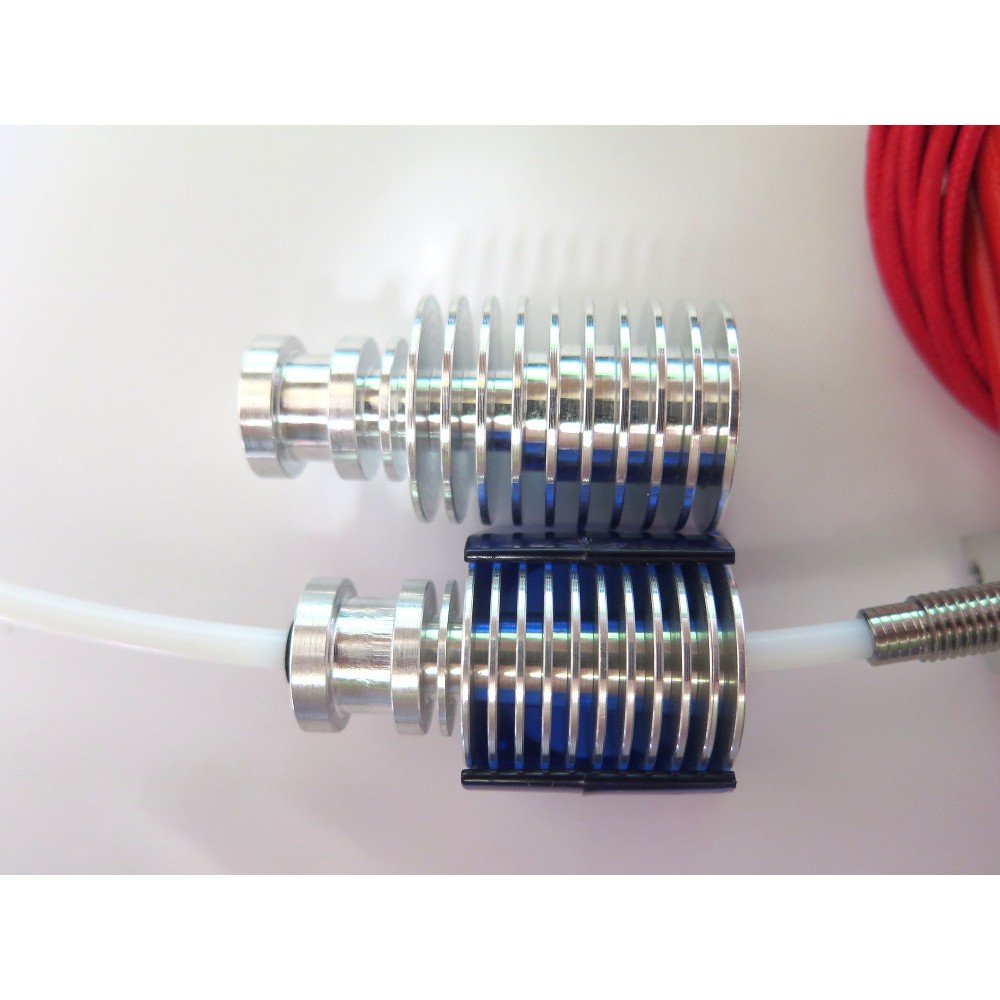

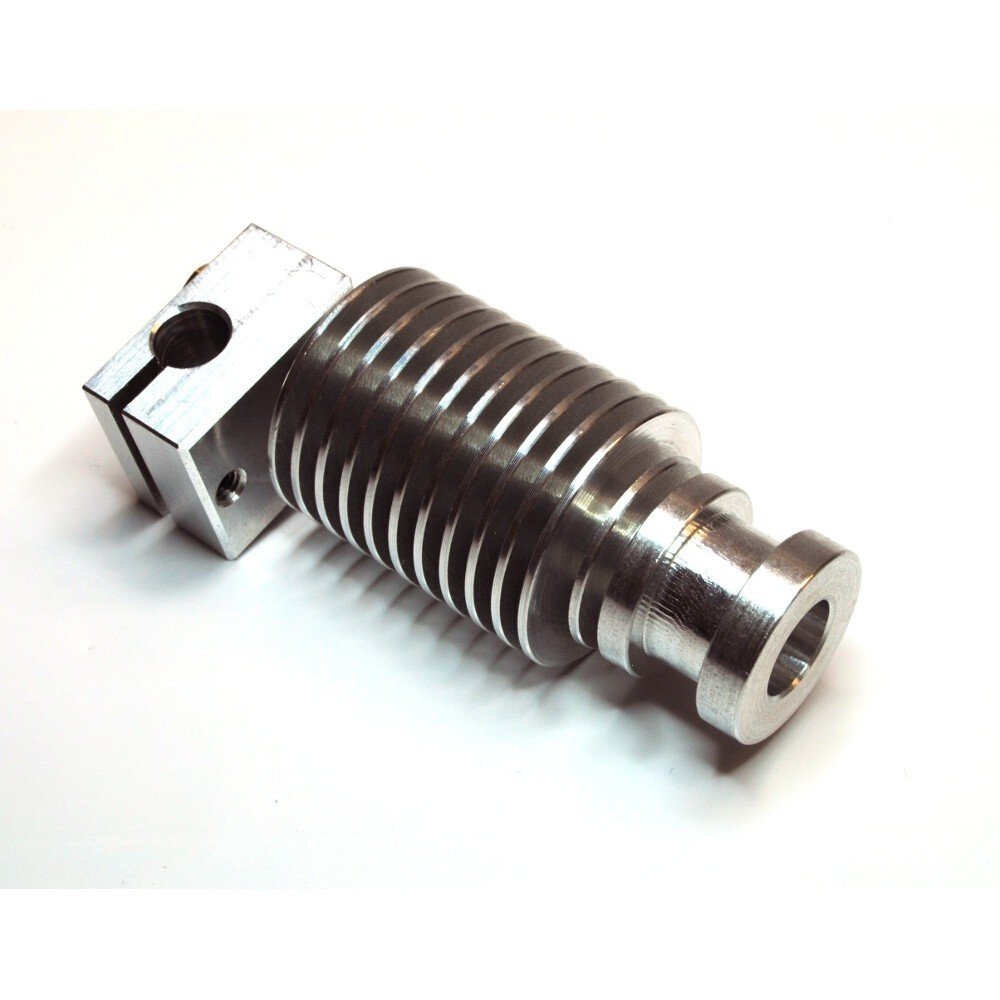

• 1 x Aluminium Heatsink (including embedded bowden coupling)
• 1 x Stainless Steel Heatbreak
• 1 x Brass Nozzle (0.4mm)
• 1 x Aluminium Heater Block

Electronics

• 1 x 100K Semitec NTC thermistor
• 1 x Heater Cartridge (12v or 24v depending on version)
• 1 x 30x30x10mm fan (12v or 24v depending on version)
• 1 x High Temperature Fiberglass Wire - for Thermistor (150mm)
• 2 x 0.75mm Ferrules - for Solder-Free Wire Joins

Fixings

• 4 x Plastfast30 3.0 x 16 screws to attach the fan to the fan duct
• 1 x M3x3 socket dome screw and M3 washer to clamp thermistor
• 1 x M3x10 socket dome screw to clamp the heater block around the heater cartridge
• 1 x Fan Duct (Injection Moulded PC)
